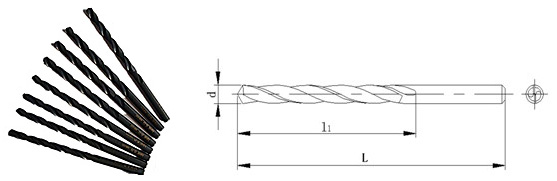

标准：GB/T 6135.3 材质：HSS-E 单位：mm
| 产品编号 | 规格 d(h8) | 总长 L | 槽长 l1 |
| MF00-3590 | 2.00 | 49 | 24 |
| 3591 | 2.10 | ||
| 3592 | 2.20 | ||
| 3593 | 2.30 | ||
| 3594 | 2.40 | 57 | 30 |
| 3595 | 2.50 | ||
| 3596 | 2.60 | ||
| 3597 | 2.70 | 61 | 33 |
| 3598 | 2.80 | ||
| 3599 | 2.90 | ||
| 3600 | 3.00 | ||
| 3601 | 3.10 | 65 | 36 |
| 3602 | 3.20 | ||
| 3603 | 3.30 | ||
| 3604 | 3.40 | 70 | 39 |
| 3605 | 3.50 | ||
| 3606 | 3.60 | ||
| 3607 | 3.70 | ||
| 3608 | 3.80 | 75 | 43 |
| 3609 | 3.90 | ||
| 3610 | 4.0 | ||
| 3611 | 4.1 | ||
| 3612 | 4.2 | ||
| 3613 | 4.3 | 80 | 47 |
3614 | 4.4 | 80 | 47 |
| 3615 | 4.5 | ||
| 3616 | 4.6 | ||
| 3617 | 4.7 | ||
| 3618 | 4.8 | 86 | 52 |
| 3619 | 4.9 | ||
| 3620 | 5.0 | ||
| 3621 | 5.1 | 86 | 52 |
| 3622 | 5.2 | ||
| 3623 | 5.3 | ||
| 3624 | 5.4 | 93 | 57 |
| 3625 | 5.5 | ||
| 3626 | 5.6 | ||
| 3627 | 5.7 | ||
| 3628 | 5.8 | ||
| 3629 | 5.9 | ||
| 3630 | 6.0 | ||
| 3631 | 6.1 | 101 | 63 |
| 3632 | 6.2 | ||
| 3633 | 6.3 | ||
| 3634 | 6.4 | ||
| 3635 | 6.5 | ||
| 3636 | 6.6 | ||
| 3637 | 6.7 | ||
| 3638 | 6.8 | 109 | 69 |
| 3639 | 6.9 | ||
| 3640 | 7.0 | ||
| 3641 | 7.1 | ||
| 3642 | 7.2 | ||
| 3643 | 7.3 | ||
| 3644 | 7.4 | ||
3645 | 7.5 | ||
| 3646 | 7.6 | 117 | 75 |
| 3647 | 7.7 | ||
| 3648 | 7.8 | ||
| 3649 | 7.9 | ||
| 3650 | 8.0 | ||
| 3651 | 8.1 | ||
| 3652 | 8.2 | ||
| 3653 | 8.3 | ||
| 3654 | 8.4 | ||
| 3655 | 8.5 | 117 | 75 |
| 3656 | 8.6 | 125 | 81 |
| 3657 | 8.7 | ||
| 3658 | 8.8 | ||
| 3659 | 8.9 | ||
| 3660 | 9.0 | ||
| 3661 | 9.1 | ||
3662 | 9.2 | 125 | 81 |
| 3663 | 9.3 | ||
| 3664 | 9.4 | ||
| 3665 | 9.5 | ||
| 3666 | 9.6 | 133 | 87 |
| 3667 | 9.7 | ||
| 3668 | 9.8 | ||
| 3669 | 9.9 | ||
| 3670 | 10.0 | ||
| 3671 | 10.1 | ||
| 3672 | 10.2 | ||
| 3673 | 10.3 | ||
| 3674 | 10.4 | ||
| 3675 | 10.5 | ||
| 3676 | 10.6 | ||
| 3677 | 10.7 | 142 | 94 |
| 3678 | 10.8 | ||
| 3679 | 10.9 | ||
| 3680 | 11.0 | ||
| 3681 | 11.1 | ||
| 3682 | 11.2 | ||
| 3683 | 11.3 | ||
| 3684 | 11.4 | ||
| 3685 | 11.5 | ||
3686 | 11.6 | ||
| 3687 | 11.7 | ||
| 3688 | 11.8 | ||
| 3689 | 11.9 | 151 | 101 |
| 3690 | 12.0 | ||
| 3691 | 12.1 | ||
| 3692 | 12.2 | ||
| 3693 | 12.3 | ||
| 3694 | 12.4 | ||
| 3695 | 12.5 | ||
| 3696 | 12.6 | 151 | 101 |
| 3697 | 12.7 | ||
| 3698 | 12.8 | ||
| 3699 | 12.9 | ||
| 3700 | 13.0 | ||
| 3701 | 13.1 | ||
| 3702 | 13.2 | ||
| 3703 | 13.3 | 160 | 108 |
| 3704 | 13.4 | ||
| 3705 | 13.5 | ||
| 3706 | 13.6 | ||
| 3707 | 13.7 | ||
| 3708 | 13.8 | ||
| 3709 | 13.9 | ||
| 3710 | 14.0 | ||
| 3711 | 14.1 | 169 | 114 |
| 3712 | 14.2 | ||
| 3713 | 14.3 | ||
| 3714 | 14.4 | ||
| 3715 | 14.5 | ||
| 3716 | 14.6 | ||
| 3717 | 14.7 | ||
| 3718 | 14.8 | ||
| 3719 | 14.9 | ||
| 3720 | 15.0 | ||
| 3721 | 15.1 | 178 | 120 |
| 3722 | 15.2 | ||
| 3723 | 15.3 | ||
| 3724 | 15.4 | ||
| 3725 | 15.5 | ||
| 3726 | 15.6 | ||
| 3727 | 15.7 | ||
| 3728 | 15.8 | ||
| 3729 | 15.9 | ||
| 3730 | 16.0 | ||
| 3731 | 16.1 | 184 | 125 |
| 3732 | 16.2 | ||
| 3733 | 16.3 | ||
| 3734 | 16.4 | ||
| 3735 | 16.5 | ||
| 3736 | 16.6 | ||
| 3737 | 16.7 | 184 | 125 |
| 3738 | 16.8 | ||
| 3739 | 16.9 | ||
| 3740 | 17.0 | ||
| 3741 | 17.1 | 191 | 130 |
| 3742 | 17.2 | ||
| 3743 | 17.3 | ||
| 3744 | 17.4 | 191 | 130 |
| 3745 | 17.5 | ||
| 3746 | 17.6 | ||
| 3747 | 17.7 | ||
| 3748 | 17.8 | ||
| 3749 | 17.9 | ||
| 3750 | 18.0 | ||
| 3751 | 18.1 | 198 | 135 |
| 3752 | 18.2 | ||
| 3753 | 18.3 | ||
| 3754 | 18.4 | ||
| 3755 | 18.5 | ||
| 3756 | 18.6 | ||
| 3757 | 18.7 | ||
| 3758 | 18.8 | ||
| 3759 | 18.9 | ||
| 3760 | 19.0 | ||
| 3761 | 19.1 | 205 | 140 |
| 3762 | 19.2 | ||
| 3763 | 19.3 | ||
| 3764 | 19.4 | ||
| 3765 | 19.5 | ||
| 3766 | 19.6 | ||
| 3767 | 19.7 | ||
| 3768 | 19.8 | ||
| 3769 | 19.9 | ||
| 3770 | 20.0 |
